U3400-Series

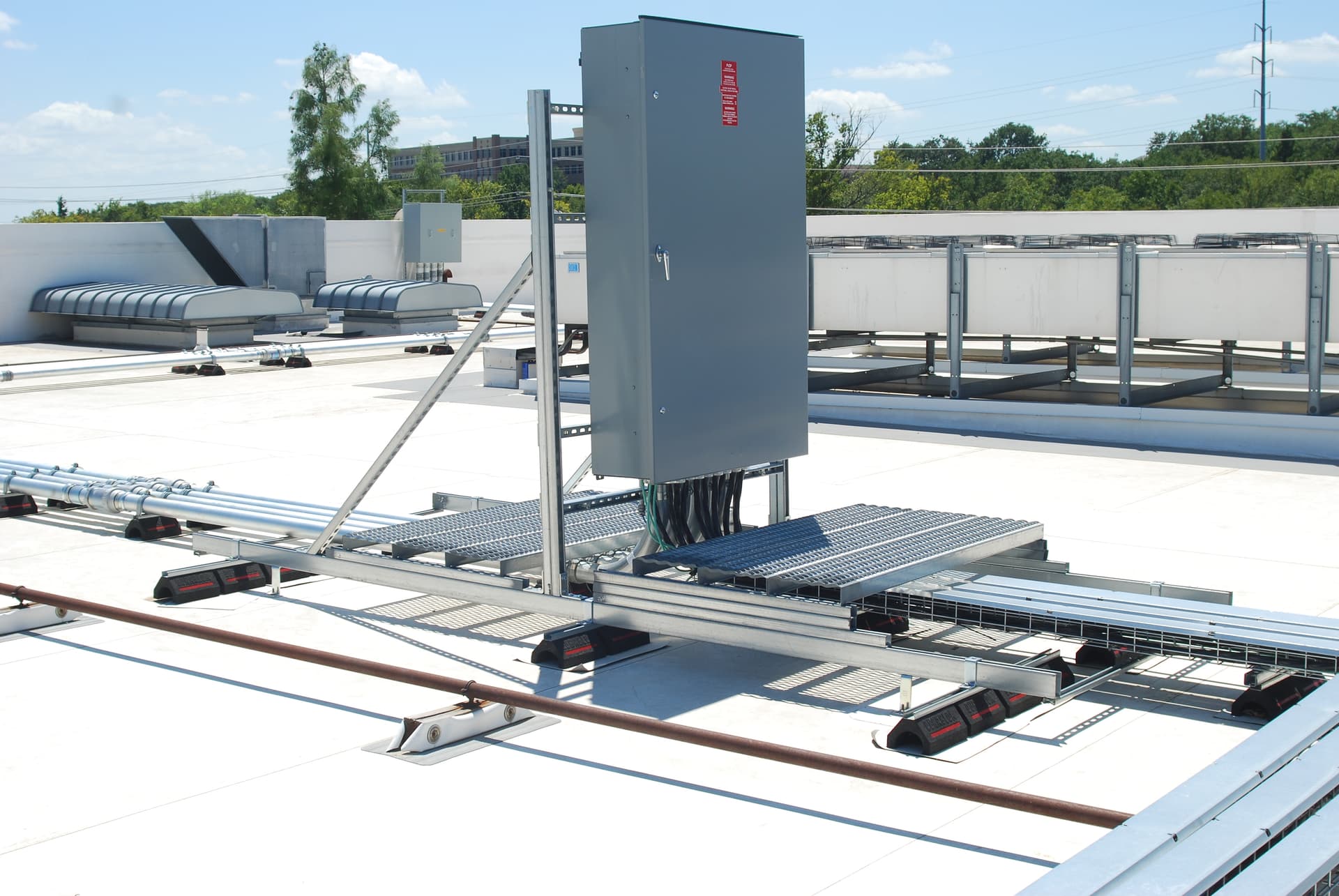

The double-bolt single-ply U-Anchor®, for the loads a single stud isn't the right answer for: full HVAC units, heavier racking, and structure that bolts to a two-stud pattern. Available in KEE, PVC, TPO, and EPDM.
Specifications
Approved for warranty
How it works
What this fits to, and what it is fitted to.

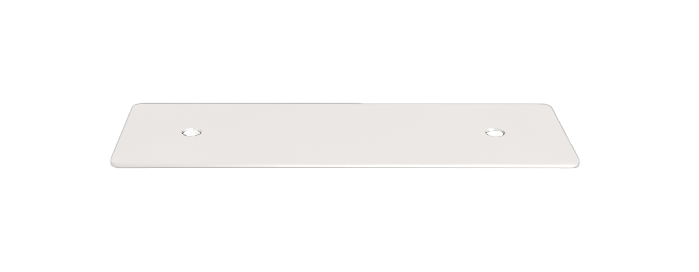

Attached on top of the cover membrane. It takes the wear from the equipment bolted down over it so the cover does not, and is not part of the waterproofing.

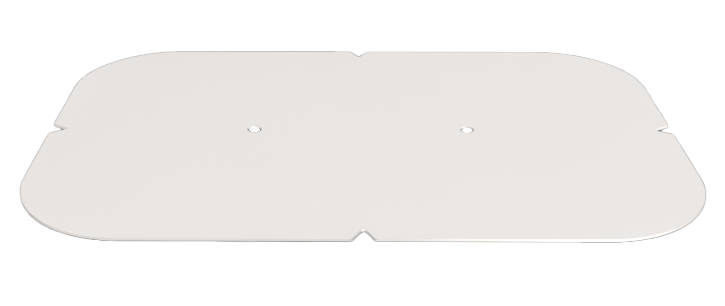

17.50" x 11.75", approx. 60 mils, factory sealed to the plate. Attached to the roof at its perimeter using the same methods the roofing crew already uses — see the installation steps for each membrane.

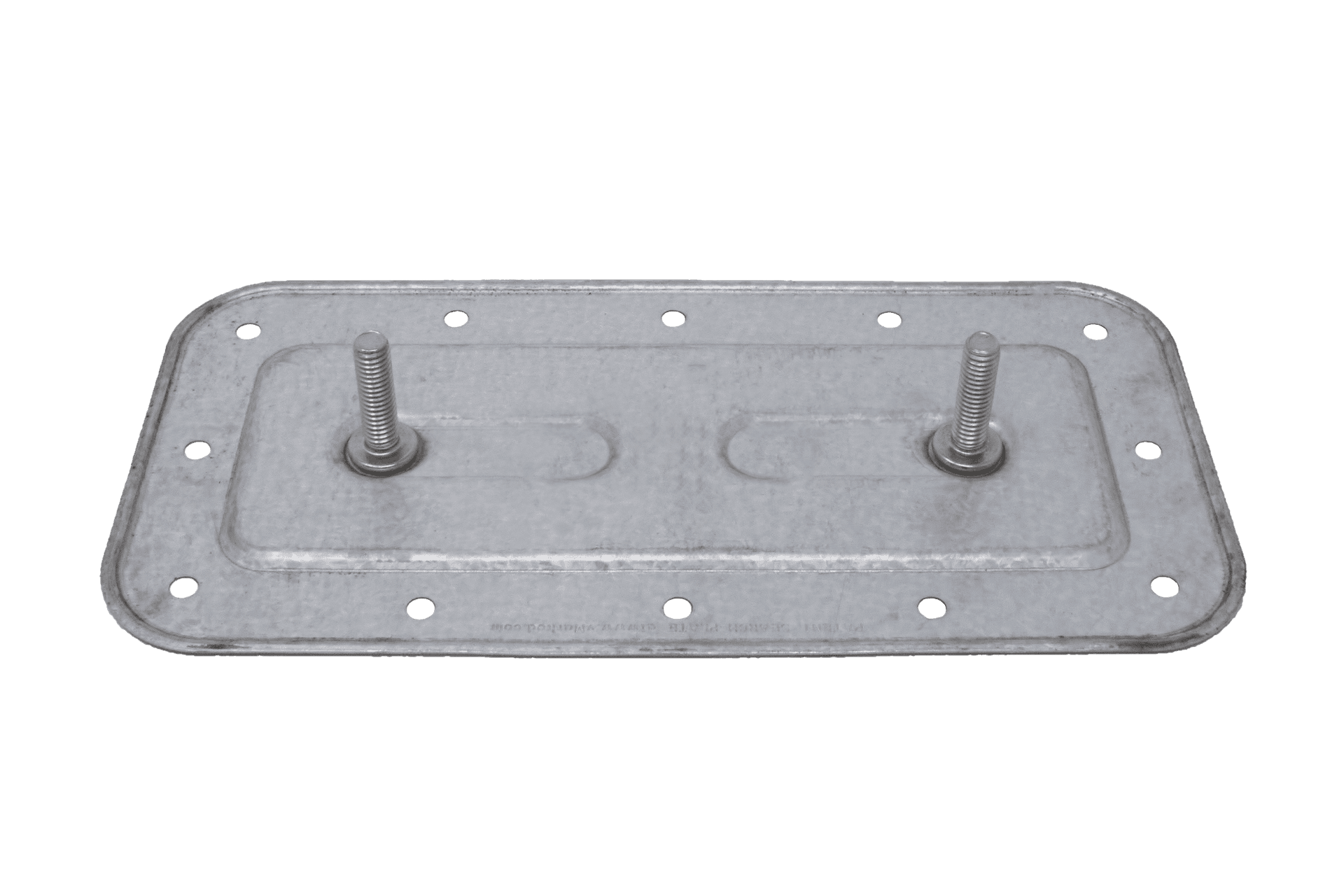

11" x 5.5" plate with twelve 0.265" fastener holes, fastened through the roofing assembly into the structural deck. It sits under the cover membrane.
Lightweight, watertight attachment for KEE membranes. Factory-sealed cover ensures secure, manufacturer-approved installation.
Documents →
Watertight attachment for fully adhered PVC. Features factory-sealed cover and mechanically attached 3000 series base plate.
Documents →
Lightweight, watertight U-Anchor® for TPO systems. Factory-sealed and fully encapsulated to reduce membrane stress.
Documents →
Lightweight, watertight U-Anchor® for EPDM. Field-installed factory-cut cover; approved for fully adhered and mechanically attached systems.
Documents →
