Camera & Light Mount
Cameras, sensors, and lights go where the sightline is, which is almost always the roof edge. The usual fix is bolting to the parapet, drilling the coping, or setting a pole in ballast. All of it is improvised, and none of it is engineered. The Camera & Light Mount carries the equipment on a low-profile arm set on a U-Anchor® base, a component of the roof rather than something sitting on top of it.
The assembly from every angle
A camera mount on 3000 Series U-Anchors, attached as a component of the roof.
Drag to turn it

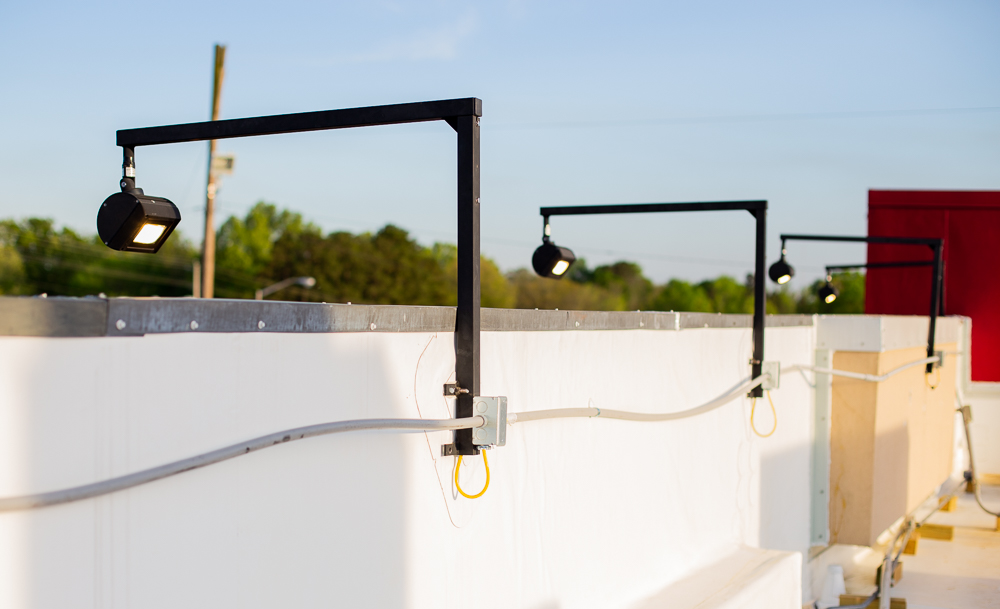

Light mount
How it works
It starts with a U-Anchor®, a component of the roof, sealed watertight at the point of attachment. Everything else connects your equipment to that one point.

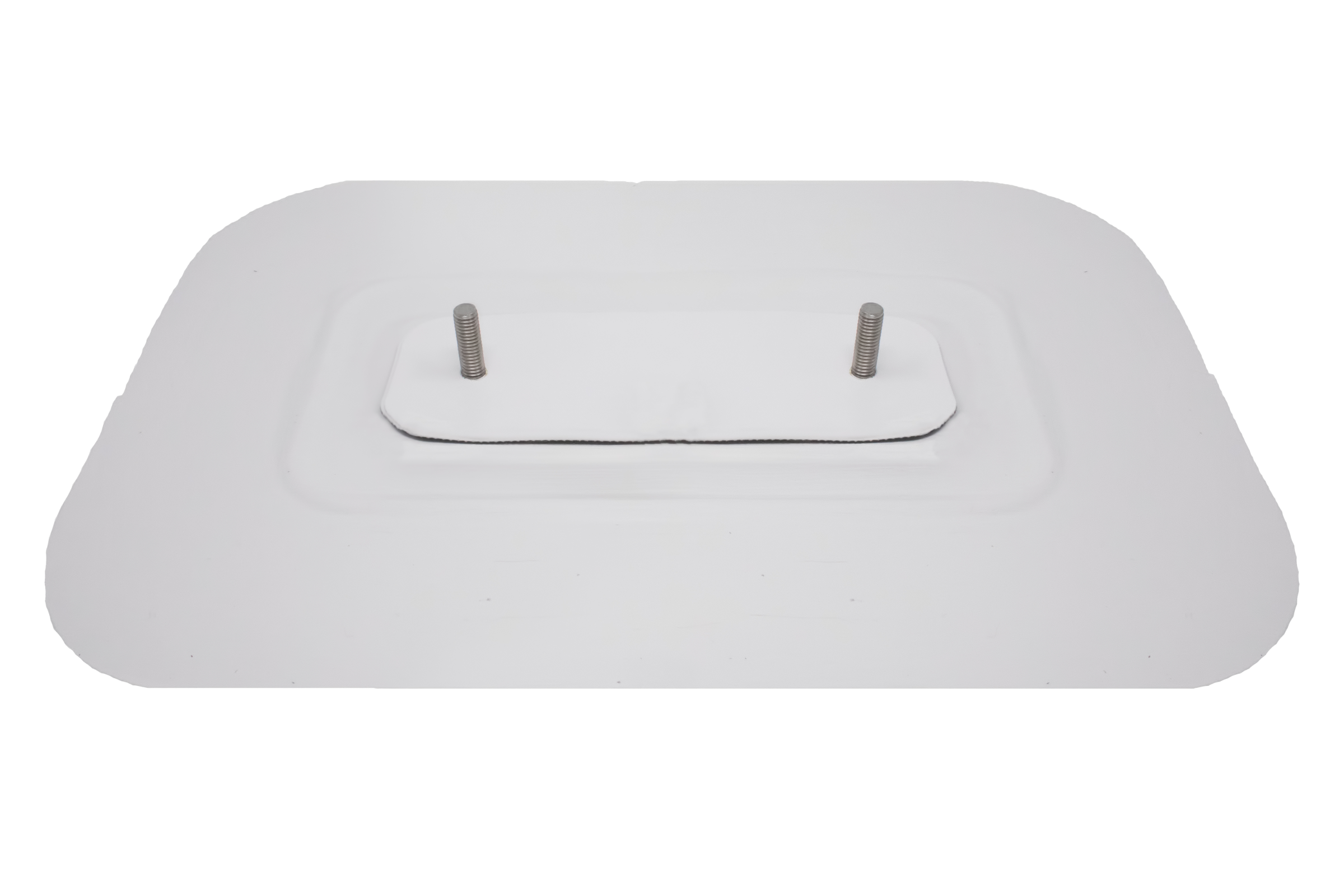

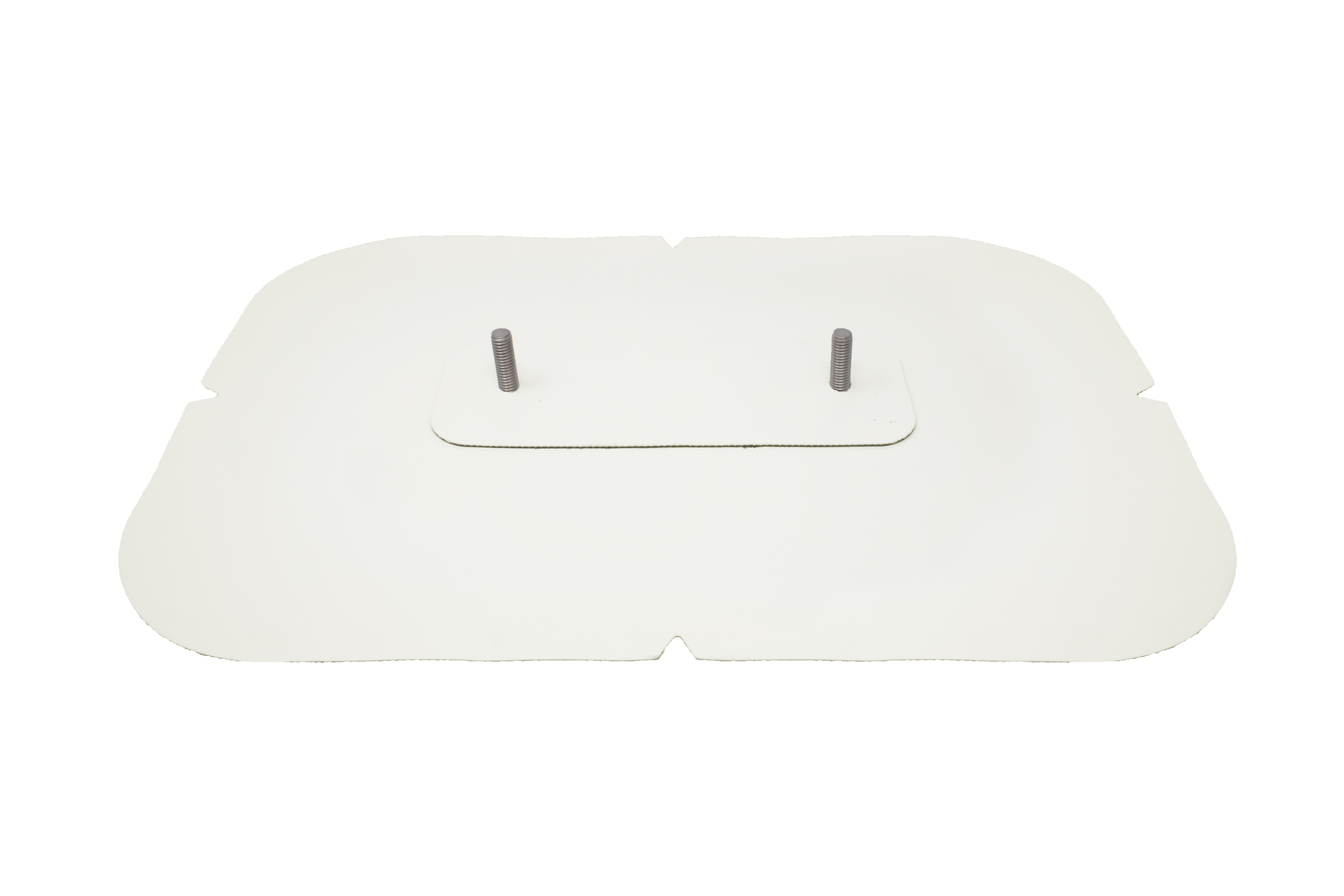

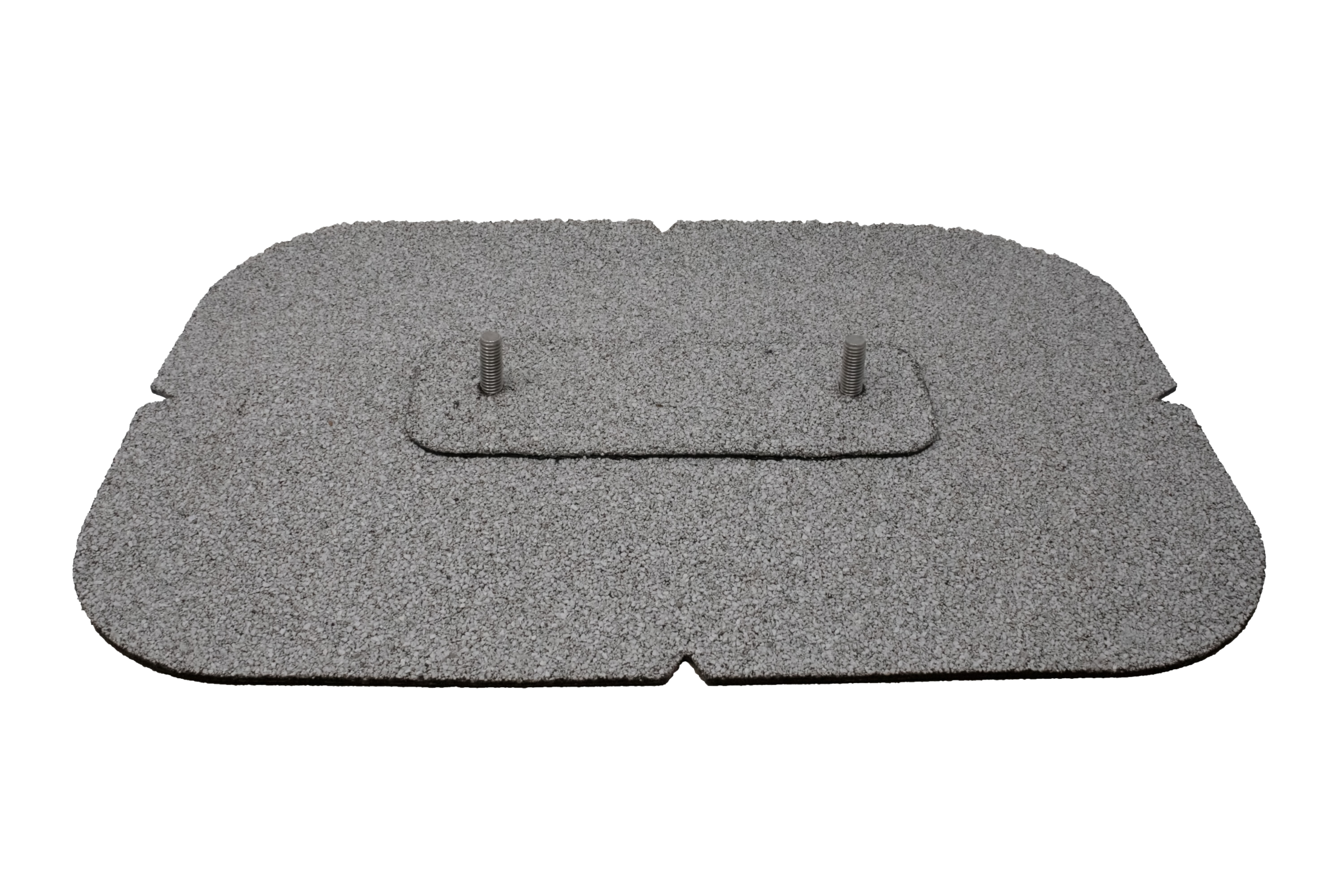

The part that carries the load. A galvanized steel plate with rolled edges that protect the membrane sits under a cover membrane matched to the roofing brand, type, and color, leaving a stainless stud at the surface for everything else to bolt to. Which one you use is decided by the membrane on the building, not by the equipment.
Mounting plate, Wall mount strut assembly, Light pole, fixture or camera (by others) — fitted to the equipment itself rather than to the roof.
The part that carries the load. A galvanized steel plate with rolled edges that protect the membrane sits under a cover membrane matched to the roofing brand, type, and color, leaving a stainless stud at the surface for everything else to bolt to. Which one you use is decided by the membrane on the building, not by the equipment.
Mounting plate, Wall mount strut assembly, Light pole, fixture or camera (by others) — fitted to the equipment itself rather than to the roof.
