U2400-Series

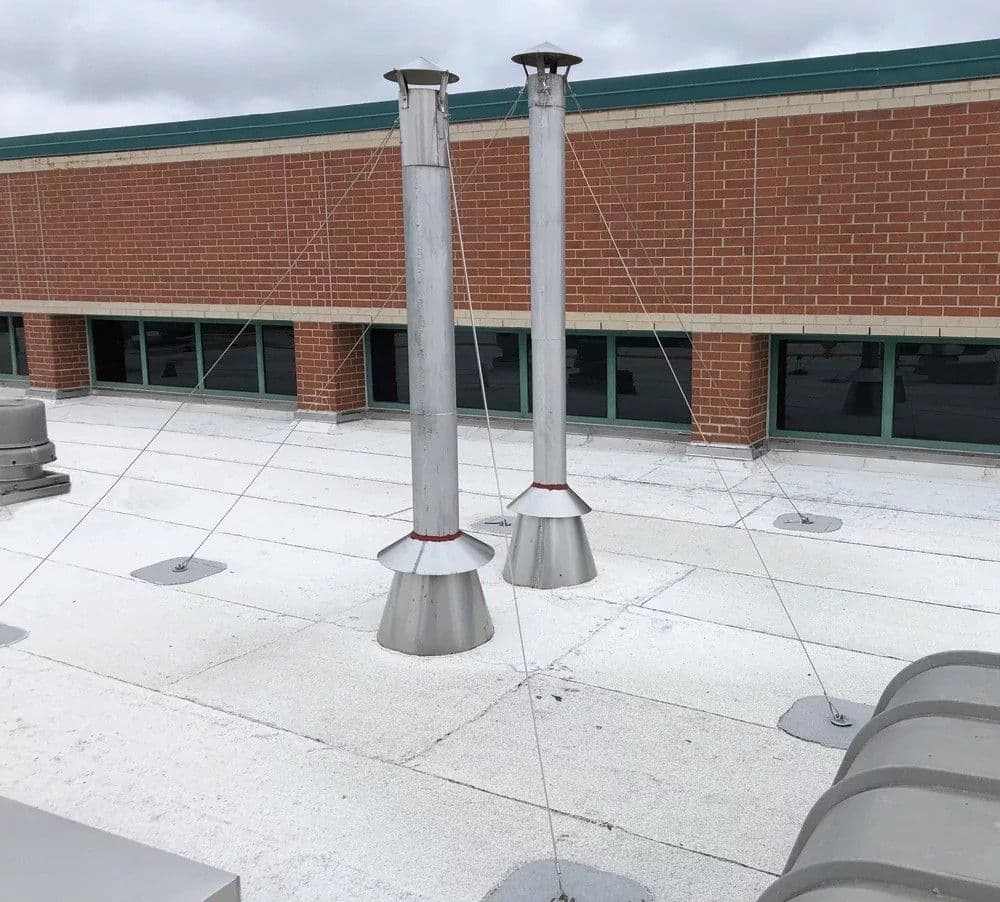

The compact single-bolt U-Anchor®, with a higher load capacity than the U2000 in a smaller footprint. Same build: a galvanized steel plate with rolled edges, a cover membrane matched to your roofing brand, type, and color, and a separator of the same membrane attached on top. Commonly paired with the Anchor Guy Wire Kit, or any attachment that needs a single bolt.
Specifications
Approved for warranty
How it works
What this fits to, and what it is fitted to.
Fitted over the cover at the stud before any other hardware. It protects the materials underneath and is not part of the waterproofing.

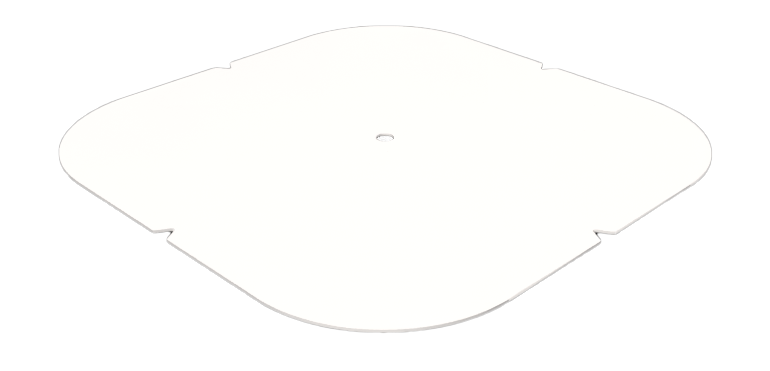

11.75" x 11.75", 60 mils as standard, brand or non-brand specific. Attached to the roof at its perimeter using the same methods the roofing crew already uses — see the installation steps for each membrane.

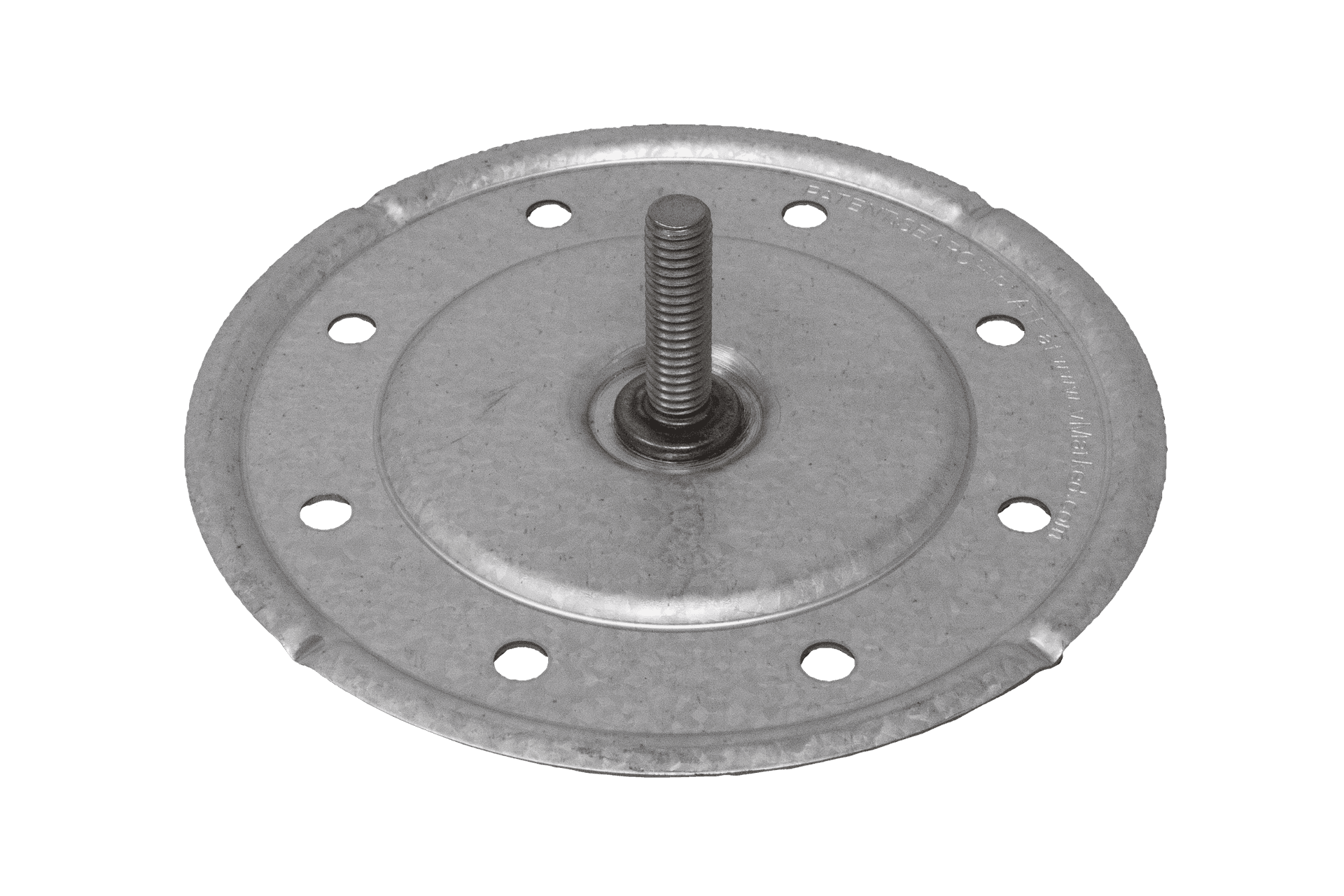

5.5" diameter plate with eight 0.265" fastener holes, fastened through the roofing assembly into the structural deck. It sits under the cover membrane.
