Roof Mounted Tower/Stack Securement
A stack is a lever, and wind is what pulls on it. The taller the run, the harder it works on whatever holds it down. The usual answer is guy wire tied to a block, a curb, or another piece of equipment. Roof Mounted Tower/Stack Securement guys the stack back to U-Anchor® bases, so the load lands on engineered attachment points. The U-Anchor® is a component of the roof, not something sitting on top of it.
The assembly from every angle

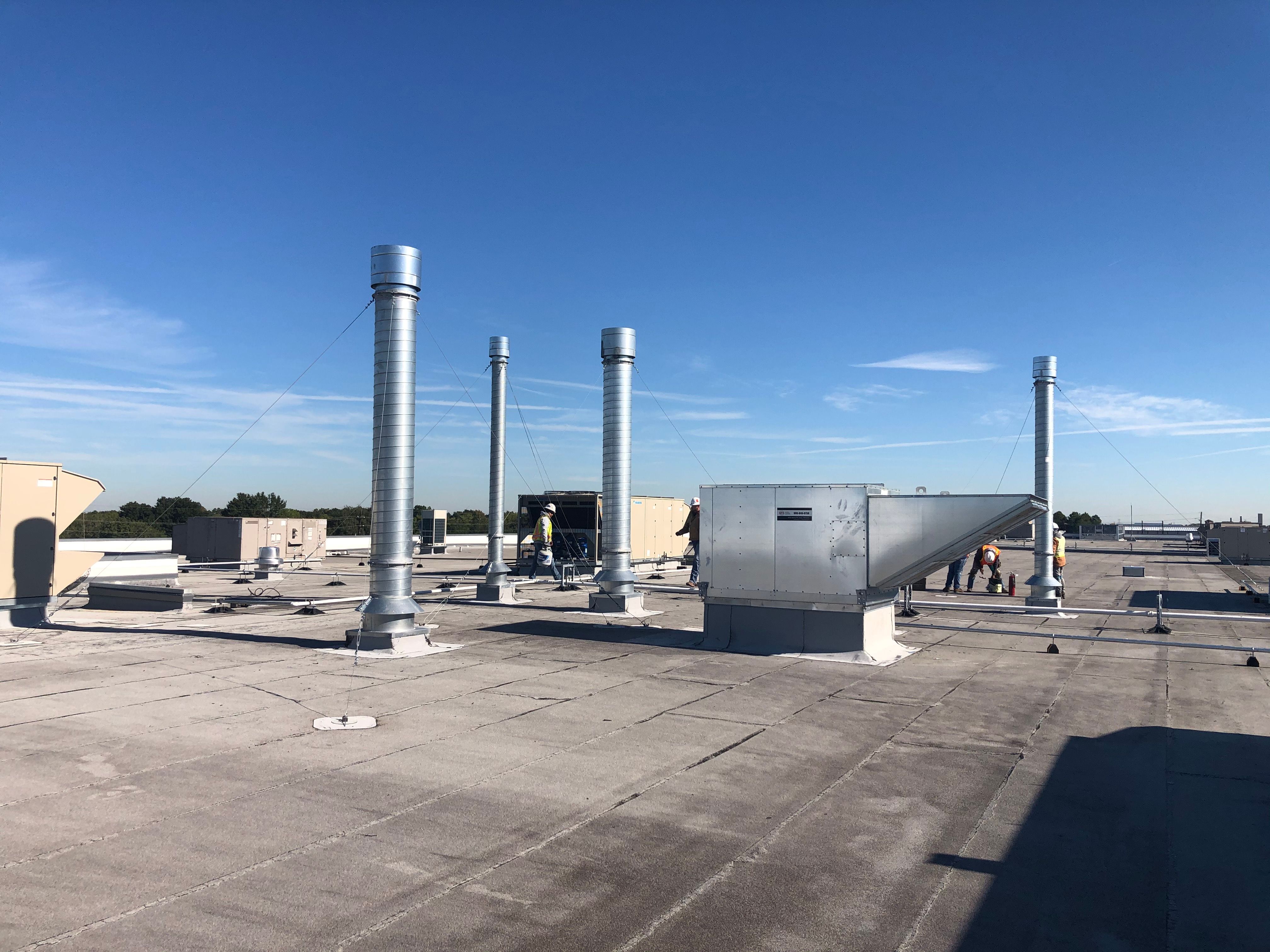

An elevated stack secured to 2000 Series U-Anchors.
Drag to turn it
How it works
It starts with a U-Anchor®, a component of the roof, sealed watertight at the point of attachment. Everything else connects your equipment to that one point.
The part that carries the load. A galvanized steel plate with rolled edges that protect the membrane sits under a cover membrane matched to the roofing brand, type, and color, leaving a stainless stud at the surface for everything else to bolt to. Which one you use is decided by the membrane on the building, not by the equipment.
What connects your equipment to that stud. Supplied with the solution, and sold on its own where a job needs more of them.
Collar, Existing stack (by others) — fitted to the equipment itself rather than to the roof.
The part that carries the load. A galvanized steel plate with rolled edges that protect the membrane sits under a cover membrane matched to the roofing brand, type, and color, leaving a stainless stud at the surface for everything else to bolt to. Which one you use is decided by the membrane on the building, not by the equipment.
What connects your equipment to that stud. Supplied with the solution, and sold on its own where a job needs more of them.
Collar, Existing stack (by others) — fitted to the equipment itself rather than to the roof.
