2-Pipe Snow Fence

The AP Solution SRS 0220 2-Pipe Snow Fence securement by Anchor Products is a complete snow retention system designed to be used with commercial roofing materials, giving building owners and contractors a reliable, engineered, and tested solution. The Snow Fence System utilizes U-Anchor™ 3000-S Series for superior strength and confidence when it comes to holding back snow on commercial roofing systems.

Each system is engineered specifically for your roof, and tested by third party engineers. Additionally, our system uses pre-flashed and prefabricated components, making installation significantly faster while providing a more consistent performance over field fabricated materials.

Our 2-Pipe Snow Fence System is designed to handle extreme loads which allows for fewer attachments and reduced labor.

PRODUCT SPECIFICATIONS:

• Permanent lightweight snow fence with superior waterproofing without the need for compression seals to exceed the long term needs of your project.
• Low-profile of snow bars prevents snow creep and typically eliminates the need
  for snow flags / restrictor plates.
• The U-Anchor installs in less than 5 minutes while the snow fence system installs quickly & easily – reducing on-site labor expenses.
• The 2-pipe snow fence system is manufactured of high tensile aluminum
  and boasts superior loads allowing for increased spacing of brackets – reducing
  costs.
• Custom colors available (mill finish is the standard)
• Pipe Collar
  • Dimensions: 1.75’’ L x 0.627’’ W x 1.75’’ H
  • Inner Diameter: 1.065’’
  • Outer Diameter: 1.75’’
  • Material Type: 304 Stainless Steel
  • Quantity: 4 per kit

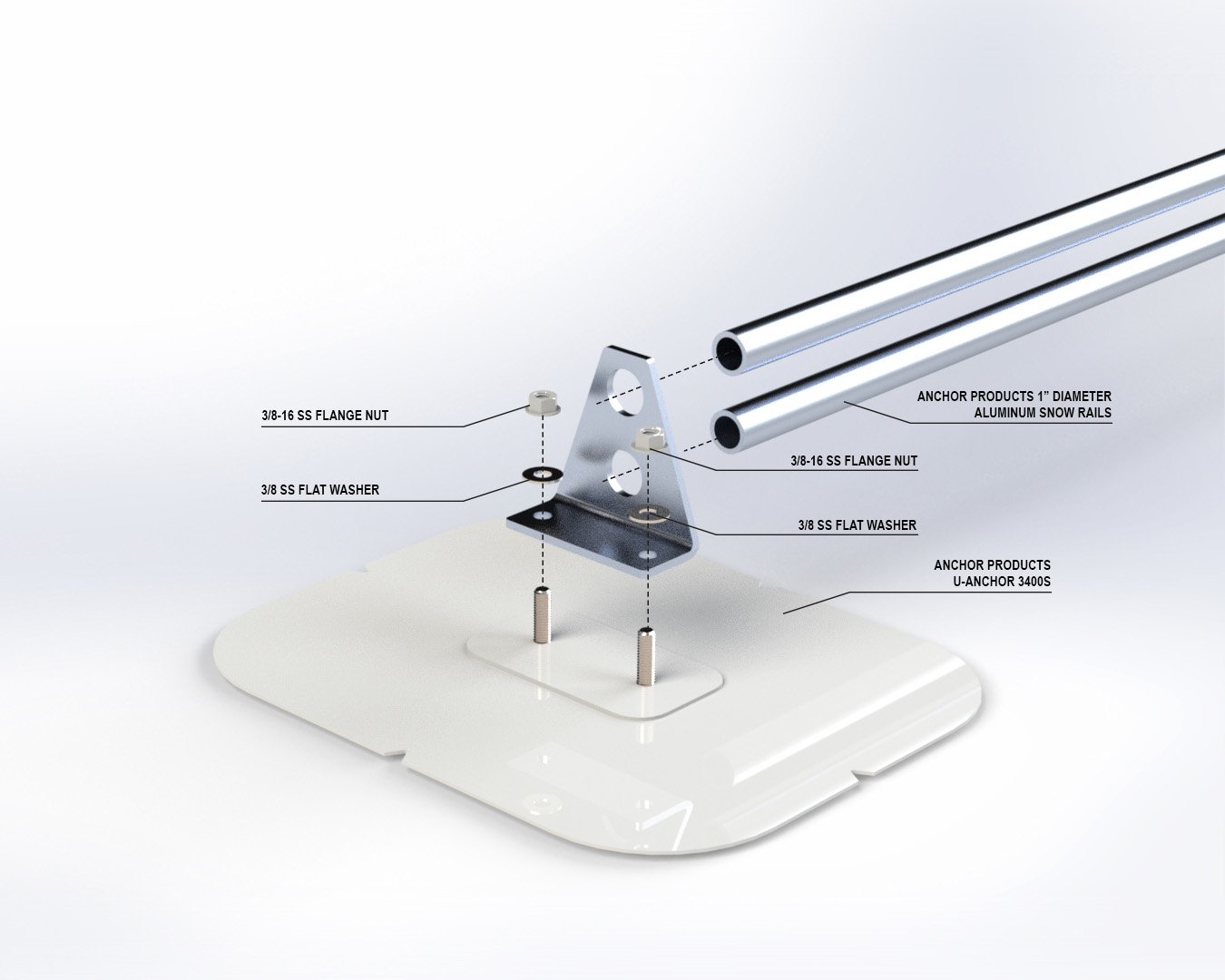

  Bracket
  • Dimensions: 4’’ L x 1.75’’ W x 4’’ H
  • Material Type: 5052 Aluminum
  • Material Thickness: 0.19’’
  • Quantity: 10 per box
  Pipe End Cap
  • Dimensions: 0.92’’ L x 0.295’’ W x 0.92’’ H
  • Outer Diameter: 0.92’’
  • Material Type: 304 Stainless Steel
  • Quantity: 4 per kit
• Permanent, lightweight snow retention providing superior waterproofing and resistance without the use of compression seals. The U-Anchor 3000-S incorporated with the system installs in less than 5 minutes while the snow retention bracket installs in less than one minute reducing labor expenses and delivering low installed cost.
  The SRS 0220 bracket is manufactured of stainless steel plate and boasts superior loads allowing for increased spacing of brackets, further reducing costs.
  Snow retention brackets eliminates the need for snow flags / restrictor plates that are required with some snow fence.

Download

The AP Solution SRS 0220 2-Pipe Snow Fence securement by Anchor Products is a complete snow retention system designed to be used with commercial roofing materials, giving building owners and contractors a reliable, engineered, and tested solution. The Snow Fence System utilizes U-Anchor™ 3000-S Series for superior strength and confidence when it comes to holding back snow on commercial roofing systems.

Each system is engineered specifically for your roof, and tested by third party engineers. Additionally, our system uses pre-flashed and prefabricated components, making installation significantly faster while providing a more consistent performance over field fabricated materials.

Our 2-Pipe Snow Fence System is designed to handle extreme loads which allows for fewer attachments and reduced labor.

Features:

• Permanent lightweight snow fence with
  superior waterproofing without the need
  for compression seals to exceed the long
  term needs of your project.
• Low-profile of snow bars prevents snow
  creep and typically eliminates the need
  for snow flags / restrictor plates.
• The U-Anchor installs in less than
  5 minutes while the snow fence system
  installs quickly & easily – reducing on-site
  labor expenses.
• The 2-pipe snow fence system is
  manufactured of high tensile aluminum
  and boasts superior loads allowing for
  increased spacing of brackets – reducing
  costs.
• Custom colors available (mill finish is
  the standard)
