U3400S-PVC
Category
3000 Series
DESCRIPTION

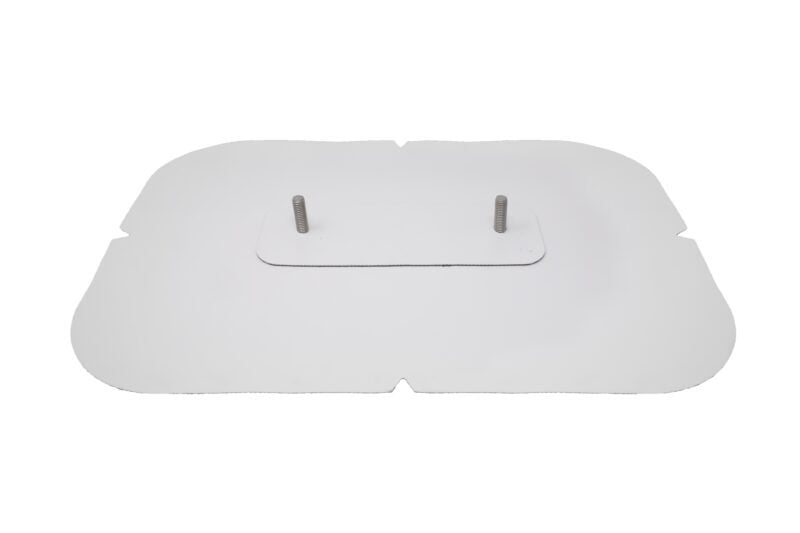

The U3400S PVC is a lightweight rooftop attachment system consisting of a U-Anchor 3000-S Series plate and cover membrane. The cover membrane is factory sealed to the top of the plate. The U3400-S PVC provides a positive, watertight, manufacturer accepted attachment for mechanically attached and fully adhered PVC single-ply membranes.
Links
DATA SHEET
DRAWINGS
-
-
- Detail Drawing
-
CSI GUIDE SPECIFICATIONS
Product information
General
Advantages
Box Dimensions
Box Weight
Color
Equipment Attachment
Fastener Material Type
Full Box Quantity
Full Pallet Quantity
Individual Weight
Length
Pallet Dimensions
Plate Fastener Hole Diameter
Plate Fastener Hole Pattern
Plate Outer Diameter?
Ratings
U-Anchor Attachment
Width
Video
Extremely strong and lightweight. Fast installation, approximate rate of 12 per man hour. Installs on any surface from flat to vertical.
18'' x 13'' x 11''
Approx. 14 lbs
Default White*
To securely mount your rooftop equipment to the U-Anchor, after its installed, the connection nut must be fastened to approximately 20-25 torque pounds. Use a calibrated torque wrench during install to ensure appropriate results are achieved.
304 Stainless Steel
10 units
40 boxes
Approx. 1.4 lbs
17.5''
48'' x 40'' x 68''
17/64" (12 holes)
0.047" (1.194mm)
11.08" x 5.47"
Shear: 8600 lbs Tension: 4600 lbs
The U3400-S PVC is attached by fastening through the roofing assembly into the structural decking with 2-12 approved fasteners. The membrane cover is then hot air welded around the perimeter to the roof membrane. Fastener selection is dictated by the system assembly, deck type, and the project engineer. Refer to installation instructions and the specified roofing material manufacturer requirements before installing.
11.75"
