DESCRIPTION

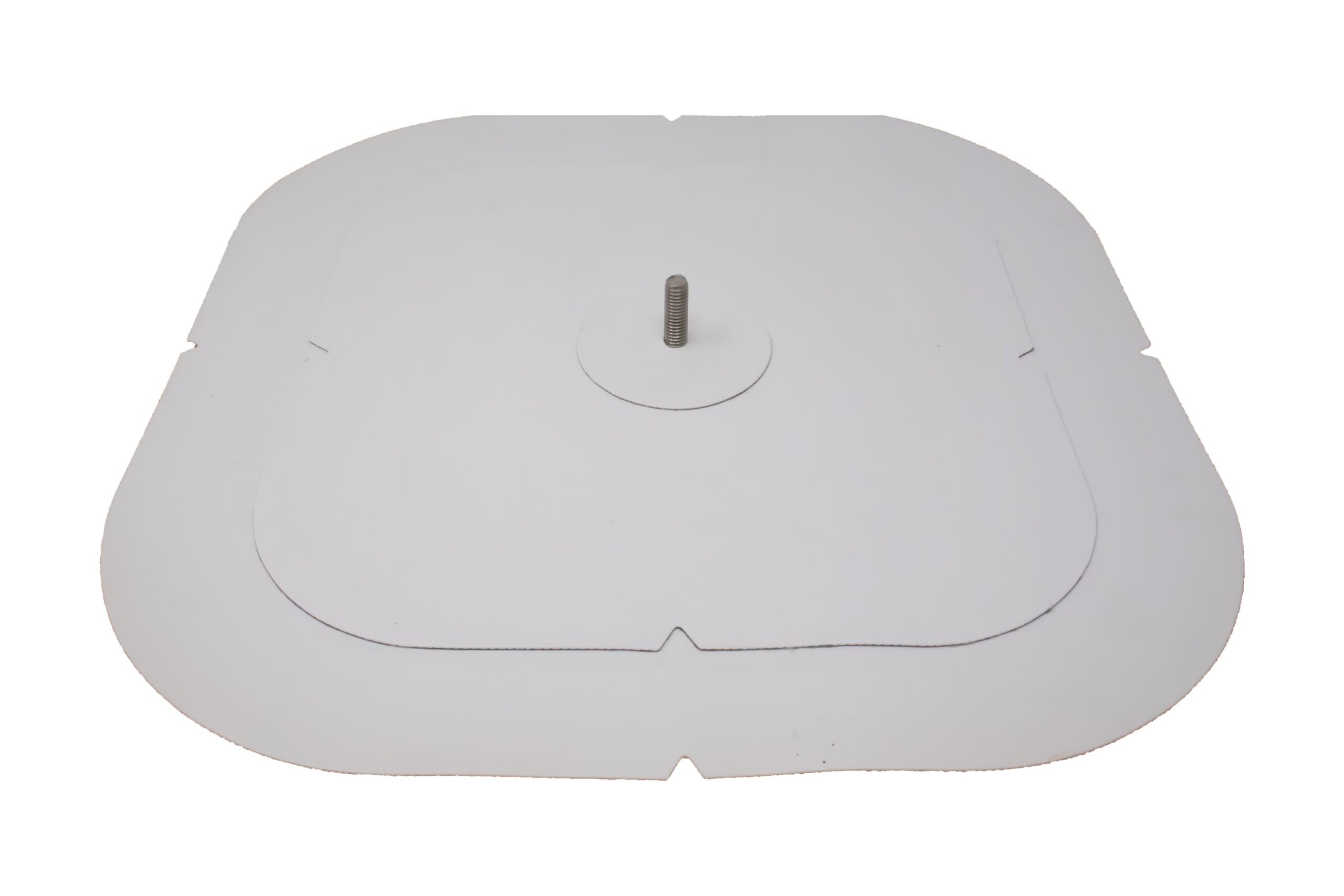

The U-Anchor 2000-PVC is a lightweight rooftop attachment system consisting of a thermoplastic target membrane and a U-Anchor 2000 series plate. The plate is factory welded to the target membrane and a matching thermoplastic cover membrane is applied over the plate and onto the target membrane, encapsulating the plate. The U2000-PVC provides a positive, watertight, manufacturer accepted attachment for fully adhered PVC roofing systems. Additionally, the U2000-PVC acts as an effective expansion joint at each rooftop attachment point and minimizes stress to roof components.
U2000-PVC (IB ROOFING SYSTEMS ONLY)
Links
DATA SHEET
DRAWINGS
- Cross-Sectional / Detail Drawing
CSI GUIDE SPECIFICATIONS
Product information
General
Advantages
Box Dimensions
Box Weight
Color
Equipment Attachment
Fastener Material Type
Full Box Quantity
Full Pallet Quantity
Individual Weight
Length
Pallet Dimensions
Plate Fastener Hole Diameter
Plate Fastener Hole Pattern
Plate Material Thickness
Plate Outer Diameter?
Ratings
U-Anchor Attachment
Width
Video
Extremely strong and lightweight. Fast installation, approximate rate of 12 per man hour. Installs on any flat surface.
17'' x 11'' x 17''
Approx. 17 lbs
Default White*
To securely mount your rooftop equipment to the U-Anchor, after its installed, the connection nut must be fastened to approximately 20-25 torque pounds. Use a calibrated torque wrench during install to ensure appropriate results are achieved.
304 Stainless Steel
10 units
30 boxes
Approx. 1.1875 lbs
15.75''
48'' x 40'' x 67''
17/64" (8 holes)
4-1/8'' Diameter
0.047'' (1.194mm)
5-1/2"
Shear: 1800 lbs Tension: 1800 lbs
The U2000-PVC is attached to a fully adhered roofing system by hot air welding around the perimeter edge consistent with the specified roofing manufacturer's hot air welding specifications.
15.75''
