U1800 Coating
Category
1000 Series
DESCRIPTION

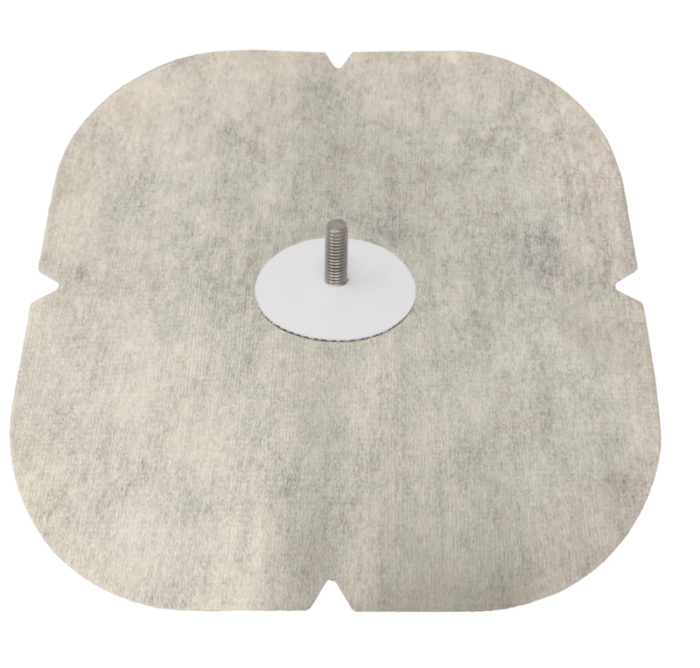

The U1800-Coatings is a lightweight rooftop attachment solution consisting of a U-Anchor 1000 Series plate and a reinforcement fabric. The U1800 includes a factory prepared reinforcement. The reinforcement is dependent on the type of coating being used, and therefore the method of installation may vary.
Links
DATA SHEET
DRAWINGS
- Cross-Sectional / Detail Drawing
CSI GUIDE SPECIFICATIONS
Product information
General
Advantages
Box Dimensions
Box Weight
Color
Equipment Attachment
Fastner Material Type
Full Box Quantity
Full Pallet Quantity
Individual Weight
Length
Pallet Dimensions
Plate Fastener Hole Diameter
Plate Fastener Hole Pattern
Plate Material Thickness
Plate Outer Diameter?
Ratings
U-Anchor Attachment
Width
Video Installation
Lightweight: 5 oz. (142 grams). Installs quickly, approximately rate of 12 per man hour. Installs on any surface from flat to vertical.
10'' x 10'' x 5''
Approx. 5 lbs
Default White*
To securely mount your rooftop equipment to the U-Anchor, after its installed, the connection nut must be fastened to approximately 20-25 torque pounds. Use a calibrated torque wrench during install to ensure appropriate results are achieved.
304 Stainless Steel
10 units
50 boxes
Approx. 0.2 lbs
9.75''
48'' x 40'' x 30''
0.236" (4 holes)
2.49'' Diameter
0.039''
4.75"
Shear: 1450 lbs0 Tension: 1050 lbs
The U1800-Coatings is attached by fastening through the roofing assembly into the structural decking with 2-4 approved fasteners. Depending on the roofing manufacturer's requirements, the reinforcement type may vary, thereby changing the method of installation. Consult the coating manufacturer for proper application instructions. Fastener selection is dictated by the system assembly, deck type, and the project engineer. Refer to installation instructions and the specified roofing material manufacturer requirements before installing.
9.75''
